Terminal Block End Plate – Ensuring Safety and Precision in Electrical Panel Assemblies
Introduction
In the realm of industrial automation, power distribution, and control panel wiring, terminal blocks serve as a fundamental building block for organized and secure electrical connections. While terminal blocks handle the main job of routing and terminating wires, there are critical accessories that complete the assembly—one of the most essential being the terminal block end plate. Often overlooked due to its simple appearance, the terminal block end plate plays a vital role in providing safety, insulation, and structural integrity to the overall setup.
Whether used in a compact control cabinet or a large-scale industrial installation, the terminal block end plate contributes to system efficiency and long-term reliability. It allows for clean separation between adjacent components, supports mechanical rigidity, and ensures that live terminals are properly covered.
Understanding the Terminal Block End Plate

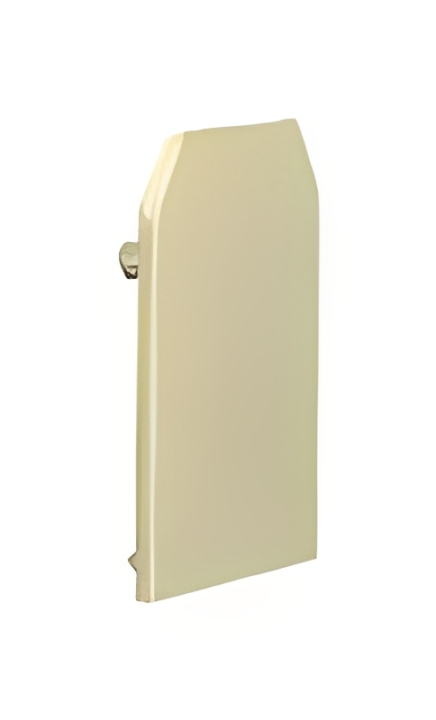

A terminal block end plate is a flat insulating accessory that is mounted on the side of a terminal block or a row of terminal blocks. It is designed to close off the exposed side of the last block in the series, preventing any accidental contact with conductive parts. The end plate ensures full insulation of the conductive areas and helps meet electrical safety standards.
It also functions as a visual and physical separator between different terminal groups, which is especially important in panels dealing with multiple voltage levels, signal types, or circuit functions. The end plate complements the modular design of terminal block systems, enabling safe and scalable wiring configurations.
Construction and Material Properties
Terminal block end plates are typically manufactured from high-grade polyamide or thermoplastic materials that offer excellent dielectric strength and mechanical durability. These materials are selected for their resistance to heat, chemicals, and impact. Flame-retardant versions are also widely available to ensure fire safety compliance in electrical cabinets.
The end plate’s design is engineered for precise fitment with specific terminal block models. Some versions include clip-on or screw-mounting features to enhance mechanical stability. The thickness, height, and width are optimized to match the profile of the terminal block, ensuring full coverage without hindering adjacent connections or labeling.
In addition, many end plates come with molded grooves or guide rails that make installation easier and provide alignment support during assembly.
Key Functions of a Terminal Block End Plate
Though it appears simple in design, the terminal block end plate performs several critical functions:
- Electrical insulation: It prevents unintentional contact with live terminals or conductive elements, ensuring safety for both personnel and components.
- Mechanical protection: It shields the side of the terminal block from dust, debris, and mechanical damage.
- Panel organization: It visually separates circuits or terminal groups, aiding in troubleshooting and layout management.
- Compliance assurance: It helps meet IEC and UL standards for electrical safety and component isolation in control systems.
These features make the end plate an indispensable part of terminal block assemblies, particularly in high-density installations or complex control systems.
Applications Across Electronic and Electrical Systems
Terminal block end plates are widely used across various industries that require structured and safe electrical wiring. Typical application areas include:
- Electrical control panels and switchboards
- Programmable logic controller (PLC) cabinets
- Building automation systems
- Renewable energy and solar power panels
- Process automation and instrumentation setups
- Railway signaling and transportation systems
- Industrial machinery and motor control centers
In these environments, the end plate provides the necessary barrier between circuit groups, allowing maintenance teams and operators to easily identify and safely work on specific terminals without exposing live contacts.
Benefits in Industrial and Commercial Installations
Using terminal block end plates brings a range of advantages to system integrators, panel builders, and electrical engineers:
- Improved safety through insulation and isolation
- Professional and organized panel layout
- Compatibility with modular DIN rail systems
- Enhanced resistance to heat, vibration, and external impact
- Simplified panel maintenance and fault identification
- Long-term reliability in harsh operating environments
These benefits result in reduced downtime, improved electrical safety, and easier compliance with industry regulations. They also support modularity and flexibility, which are essential for expanding or upgrading electrical systems.
Integration with DIN Rail Systems
Most terminal block assemblies are mounted on DIN rails for structured installation. The terminal block end plate fits seamlessly into this system, aligning perfectly with the block’s profile and the adjacent end clamps or support plates. The result is a uniform and reliable assembly that maintains its structural integrity during vibration, thermal expansion, or cable tension.
End plates also help maintain the strength of the terminal block stack, especially in installations that involve multiple rows or layers. When secured with end brackets, the system becomes mechanically robust, minimizing movement and reducing stress on the wires and terminals.
Selection and Compatibility Considerations
When selecting a terminal block end plate, it is crucial to choose one that is compatible with the specific terminal block model being used. Manufacturers typically offer a range of end plates designed for various series and sizes of terminal blocks. Important factors to consider include:
- Terminal block series and dimensions
- Material rating and operating temperature
- Mounting method (snap-on or screw type)
- Color coding or labeling options
- Flame retardant or halogen-free requirements
Matching the end plate to the terminal block ensures proper sealing, fit, and performance over time.
Compliance with Electrical Standards
Terminal block end plates are designed and tested to comply with international safety and performance standards such as IEC 60947, UL 1059, and RoHS directives. These standards ensure that the end plate materials, dimensions, and insulation properties meet the necessary electrical insulation and flame resistance levels.
By using compliant end plates, manufacturers and engineers can ensure that their control panels and electrical systems meet regulatory requirements for safety, quality, and environmental sustainability.
Future Trends and Importance in Smart Infrastructure
With the increasing shift toward smart grids, industrial automation, and IoT-based systems, control panels are becoming more complex and densely packed. The role of accessories like the terminal block end plate becomes even more critical in ensuring safety, ease of maintenance, and long-term system performance.
As electrical panels evolve to accommodate intelligent devices and communication modules, the importance of robust physical separation and insulation remains unchanged. Components like terminal block end plates ensure the infrastructure remains safe, serviceable, and scalable.
Conclusion
The terminal block end plate may seem like a simple accessory, but its contribution to the safety, organization, and performance of electrical systems is significant. It serves as the final piece in the puzzle of terminal block assemblies, providing the necessary barrier that keeps circuits isolated, panels organized, and personnel safe.
Engineers and panel builders seeking long-term reliability and compliance in their designs should always include high-quality terminal block end plates as part of their electrical systems. Whether in a factory control room, a renewable energy setup, or a building management system, this essential component ensures that every connection is as safe and secure as it is efficient.
